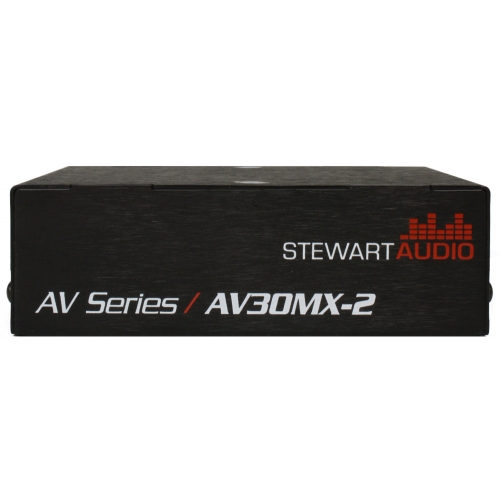

AV30MX-2 - 2 Channel Stereo Mixer Amplifier
2 channel stereo mixer amplifier in a subcompact, 1/4 rack form factor. This amplifier is plenum rated for above-ceiling applications and uses our Signal Sense Technology for Energy Star compliance.
- Music and fire alarm muting
- Clean full-range dynamic power
- Signal Detect trigger for sleep & wake up
- Multiple mounting options
- External inline power supply
The sub compact AV30MX-2 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D mixer amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV30MX-2 allows amplifi cation to be located in places off limits to normal mixer amplifiers without compromising sound or power. Like all Stewart products, the AV30MX-2 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology™ (SSPT ™) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.
| 4 Ohm Stereo Power | 30W |
| 8 Ohm Stereo Power | 30W |
| Frequency Response (+0, -3 dB, 1W) | 30 Hz-20 kHz |
| Power Bandwidth (+3dB, -3dB) | 30 Hz-30 kHz |
| THD+N | <.1% @ 1 Watt |
| Signal-to-Noise Ratio | >100dB |
| External Mute | 5-12VDC |
| Slew Rate | 30V/microsecond |
| Input Sensitivity | .5V (-3 dBV) |
| Standard Voltage Gain | 28X (26.5dB) |
| Input Impedance (Unabalanced) | 10k Ohms |
| Standby, Idle Current Draw, 1/8 Power Draw | 0.005/0.01/0.15 Amps |
| Class | D |
| Input Connectors | 3.5mm Stereo, Dual RCA |
| Output Connectors | Euro Block |
| Power Supply | External in-line 48VDC (Included) |
| Cooling | Convection-Cooling (No Fans) |
| Controls | 2 Independent Level Controls |
| LED Indicators | Power, Signal Present & Clip |
| Construction | Aluminum Chassis |
| Dimensions (height, width, depth) | 1.25"H x 4.35"W x 3.2"D |
| Weight | <.37 lbs (0.16kg) |
| Warranty | 3 years |
| Plenum Rating | UL 2043 Approved |
