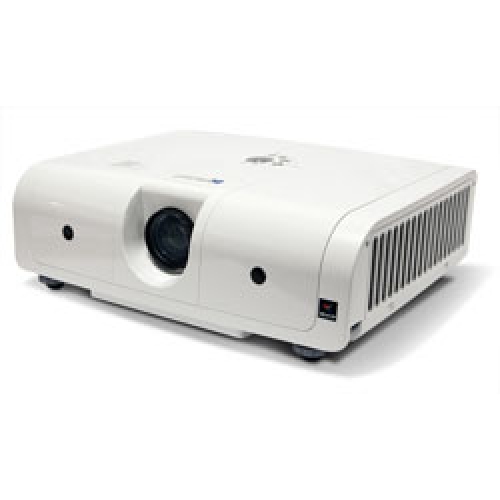

MPWX70E
The MPWX70e is as durable as it is versatile, and is especially great in smoky, dusty environments, either indoors or outdoors. An internal automatic fan sensor manages airflow and reminds users when the filter needs to be changed. Replacement lamps and filters are easily swapped in via a side panel, eliminating the need to dismount the unit for maintenance.
With two brightness levels ranging from 3200 to 4200 lumens, the MPWX70e is suitable for small and large spaces. Its auto brightness feature detects ambient light, adjusting the lamps to suit the setting and extending lamp life.
A powerful network-ready RJ-45 interface means that the MPWX70e can be managed from remote locations, which increases efficiency and maximizes control capabilities. The variable audio output automatically switches to the selected source.
| Supported Resolution | 1600x1200 (UXGA) |
| Lamp | 275w NSH |
| Lamp Life | 2000 Lamp Hours (Normal) 3000 Lamp Hours (Eco) |
| Colors | 16.7 Million True Color |
| Aspect Ratio | Native 16:10 compatable 4:3 |
| Throw Ratio | 1.5 ~ 1.8 (x screen width) |
| Zoom Ratio | 1.2:1 |
| Contrast Ratio | 500:1 |
| Display Type | 0.79” LCD w/ MLA x 3 |
| H-Sync Range | 15—107 kHz |
| V-Sync Range | 43—120 kHz |
| Inputs | DVI-I w/3.5 mm Audio, VGA w/3.5mm Audio, S-Video, Composite Video, 3.5mm Audio, RCA R/L Audio |
| Outputs | VGA w/3.5mm Audio |
| Projector Controls | USB, RS232 (DIN), RS232 (9-pin), RJ45 (LAN Control) |
| Speakers | 1 x 8w Mono |
| Audible Noise | 33 dB (Standard) 30 dB (Economy) |
| Dimensions | (WxDxH) 18.9" x 14.2” x 5.7” |
| Weight | 16.5 lbs |
| Projector Lens | Manual zoom/focus |
| Keystone Adj. | +/- 30º Vertical |
| Adjustments | Remote & on projector |
| Power Supply | AC 100-240V at 50-60Hz Auto changing |
| Power Consumption | 430 Watts (Typical) |
| HDTV/EDTV Compatibility | 480i/p, 525i/p, 576i/p, 625i/p, 720p, 1080i |
| Video Compatibility | NTSC, NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM |
| Workstation Compatibility | Yes |
| Throw Distance | 4'-30' |
| Brightness (Eco) | 3200 ANSI Lumens |
