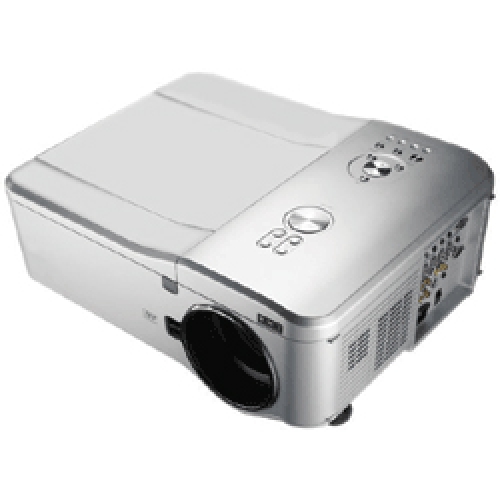

PRO7501DP

With a whopping 7500-lumen maximum capacity, this projector is ideal for big-impact presentations in large venues, even when the space is fully lit. For truly gigantic illumination and enhanced dramatic effect, stack several together and combine horizontal and vertical displays.
Choose either single or dual lamp mode; either way, the Pro7501DP will cycle from one lamp to the other to ensure balanced use and extend lamp life. And an impressive array of four lens options offers versatility for shows and spaces of any size.

• Supported Resolution 1600x1200 (UXGA)
• Lamp 280 watts (standard) dual lamp, 230 watts (economy) dual lamp
• Lamp Life 2000 Lamp Hours (Standard) 3000 Lamp Hours (Eco)
• Colors 16.7 Million True Color
• Aspect Ratio 4:3 (Native) Compatible 1:1, 4:3, 16:9, 2.35:1
• Throw Ratio 1.78~2.35 (standard), 0.774 (fixed), 1.33~1.79 (wide zoom), 2.22~4.43 (long zoom 1 lens), 4.43~8.3 (long zoom 2 lens)
• Zoom Ratio 1.32 (standard), 1.34 (wide zoom), 2.0 (long zoom 1 lens), 1.85 (long zoom 2 lens)
• Contrast Ratio 2500:1
• Display Type 0.7" x 1 LVDS DLP w/ DDP 3020
• H-Sync Range Horizontal 15, 31 - 90 kHz
• V-Sync Range Vertical 50-85 kHz
• Inputs

  • DVI-D (HDCP) x 1
  • VGA (DB-15) x 1
  • Component 1 - BNC x 5
  • Component 2 - RCA x 3
  • S-Video (mini din) x 1
  • Composite video (RCA x 1)
  • Audio (video) - RCA x 2 (S-video)
  • RCA x 2 (Component video)
  • Audio (3.5mm) - DVI-D x 1
  • VGA x 1
  • 5BNC x 1 Outputs Monitor out (DB-15) X 1
  • Audio (PC) x 1
  • Projector Controls RJ45 x 1, USB, RS232 (9-pin D-sub)
  • Screen trigger 3.5mm
  • Speakers 2 x 3 Watt stereo speakers
  • Audible Noise 31dB (typical)/32dB (max) single, 34dB (typical)/35dB (max) single, 34dB (typical)/35dB (max) dual, 39dB (typical)/40dB (max) dual
  • Dimensions (WxDxH) 20.35” x 15.63" x 7.68”
  • Weight 46 lbs
  • Projector Lens Powered Lens (Zoom/Focus)
  • Powered Lens Shift ( Horizontal / Vertical )
  • Keystone Adj. Horizontal keystone: V (+/-40°) H (+/-35°) @ (TR 1.78), Optical offset 50% under single direction
  • Adjustments Remote & on projector
  • Power Supply 100-240V/AC
  • Power Consumption 710w (typical - standard dual), 375w (typical - standard single), 580w (typical - economy dual), 315w (typical - economy single)
  • HDTV/EDTV Compatibility 480i/p, 720p, 1080i
  • Video Compatibility NTSC, NTSC 4.43, PAL, SECAM
  • Workstation Compatibility Yes
