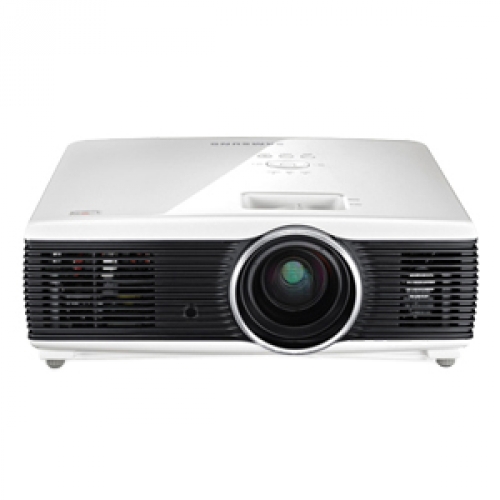

F10M Data Projector

The Samsung F10M data projector features the first LED light source outputting up to 1,000 ANSI lumens. The RGB LED light source has a wide emitting area for primary colors, delivering greater color range and intensity. It’s rated at more than 30,000 hours, and eliminates the need for costly replacement lamps. With Auto Keystone Correction, quick release legs and quick on / off, the F10M will have you up and running quickly. Blackboard mode enables projection on a black or green screen. Closed captioning can display audio as text from video sources. And with networkability (RJ45 port) for control, monitoring and scheduling, along with the USB Document Viewer application, the F10M’s flexibility is ideal for both mounted and table-top environments.

Lens    Standard Lens Zoom: 1.2:1
Standard Lens Throw Ratio: 1.48 (WIDE), 1.78 (TELE)
Standard Lens Image Offset Ratio: 80 %
Lamp    Lamp Type: LED PT120
Lamp Life: > 30,000 hours (Economy Mode))
Aspect Ratio    4:3
Display Size    40" - 300"
Throw Distance    4.6 ~ 42.6 ft.
Brightness    High Bright: 1,000 ANSI Lumens
Contrast Ratio    2000:1
Horizontal Refresh Rate    30 - 80 KHz
Vertical Refresh Rate    56 - 75 Hz
Connectivity
Input Video Compatibility    Analog RGB, Digital, S-Video, Composite, Component
NTSC, NTSC-4.43, PAL, PAL-M, PAL-N, PAL-60, SECAM, 480 i, 576 i, 480 pixels, 576 pixels, 720 pixels, 1,080i
Input Video Connectors    D-sub, HDMI, Composite, S-Video
Input Audio Connectors    Stereo RCA Jacks Input
Power
Power Supply    100 - 240 VAC, 50/60Hz
Power Consumption    250 Watts
Convenience
Built-in Speakers    7W Mono
Compatibility    VGA, SVGA, XGA, SXGA, UXGA
Features    The Samsung F10M data projector features the first 1,000-ANSI lumens LED light source. It gives you greater color range and intensity, is rated at more than 30,000 hours, and eliminates the need for costly replacement lamps. The F10M also features Blackboard mode, for projection on a black or green screen.
Dimensions
Dimensions    11.7" x 9.1" x 3.6"
Weight    9.24 lbs.
Temperature Range    41 ~ 95 ° F
Humidity Range    20% ~ 80% (Non-condensing)
Manufacturer Warranty
Parts    1 year limited
Labor    1 year limited
