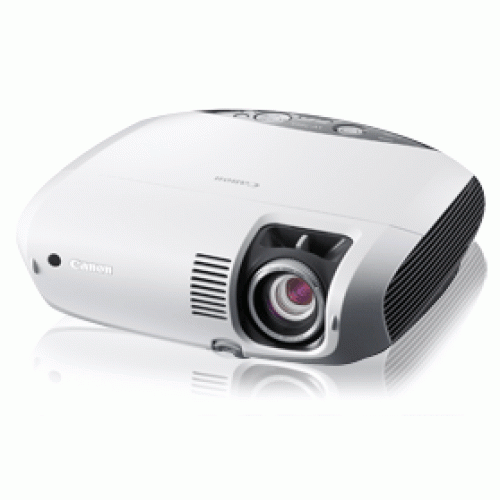

LV-7285 3LCD Projector
Canon's LV-7285 projector will make your presentations shine- without breaking the budget. These value-driven, portable XGA (1280 x 800) resolution projectors deliver astonishingly bright images and high contrast, and are ideal for education and small-to-medium-sized business environments.
Featuring network capability, easy-to-use controls, added security features and advanced image-optimizing technology- the LV-7285 epitomizes convenience while producing images of the superior quality for which Canon is renowned. The LV-7285 was designed with a high-efficiency power supply, and other energy-saving features such as sleep timer, quick startup and a carbon meter. The projector also features DVI-I support and less than 1W standby power consumption. In addition, the projector's improved lamp lighting system can now deliver up to 5,000 hours of lamp life. Compact and lightweight, the LV-7285's built-in carrying handle makes for easy transportation to wherever presentations are needed.
Projector Specifications:
Imaging Device 0.63" Transmissive LCD Panels x 3
Aspect Ratio 4:3
Native Resolution XGA (1024x768)
Brightness 2600 Lumens
Uniformity 85%
Contrast Ratio 500:1, 2000:1 with Auto Iris
Digital Keystone (Vertical) ± 30 degrees (Auto/Manual)
Digital Keystone (Horizontal) N/A
Optics
Projection Lens F1.7 - 2.0, f=19.8 - 23.7 mm
Lens Shift 8.4 - 1.6
Zoom 1.2x Manual
Focus Manual
Screen Size 21 - 300 inches
Throw Distance 2.6 - 37.1 feet
Throw Ratio 1.53 - 1.84 : 1
Image Adjustments
Image Mode Standard / Presentation / Cinema / Video / sRGB
Color Adjust Brightness / Contrast / Sharpness / Gamma
Wall Correction Whiteboard / Greenboard / Greenboard (gray) / Light Yellow / Light Green / Light Blue / Sky Blue / Light Rose / Pink
Mounting Ceiling / Rear / Ceiling and Rear
Tilt Angle Adjustable foot up to 10 degrees
Input Signals
Scanning Frequency H:15 ~ 100 kHz , V:50 ~ 120 Hz, Dot clock: 108 MHz
Analog PC Input UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC
Digital PC Input SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC, 1080i / 720p / 576p / 480p
Video/S-Video Input NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N / PAL-60
Component Input 1080i / 720p / 576p / 576i / 480p / 480i
Terminals
(Input) DVI-I 29pin Digital PC input (HDCP Compliant) / Analog (RGB) PC input
(Input) D-Sub 15pin Analog RGB / Component input
(Input) RCA x1 Composite Video input
(Input) Mini DIN 4pin S-Video Input
(Input) RJ-45 Network input x1
(Input) Stereo Mini Jack Stereo audio input x2
(Output) D-Sub 15pin Analog RGB output
(Output) Stereo Mini Jack Stereo audio output x1
Built-in Speaker 7W (Mono)
Control Terminal RS-232C
Lamp
Lamp Type 180W - NSHA
Lamp Life 4000 / 5000 Hours
Remote Control
Sensor Front
Mouse Control N/A
Ratings
Fan Noise (Quiet/Normal) 35 / 29 dB
Power Consumption (Normal/Quiet/Stand-By) 294W / 228W / 0.7W
Power Voltage AC 100 ~ 240V, 50/60Hz
Temperature Operating 41° to 104° F (5° to 40° C), 20 ~ 80% RH
Temperature Storage 14° to 122° F (-10° to 50° C), 20 ~ 80% RH
Dimension (WxHxD) 12.48" x 4.37" x 13.23" (317 x 111 x 336 mm)
Weight 7.28 lbs. (3.3 kg)
Warranty 3 years parts and labor, 120 day lamp
